WALL-MOUNTED LITHIUM BATTERY

WALL-MOUNTED LITHIUM BATTERY – 25.6V200Ah

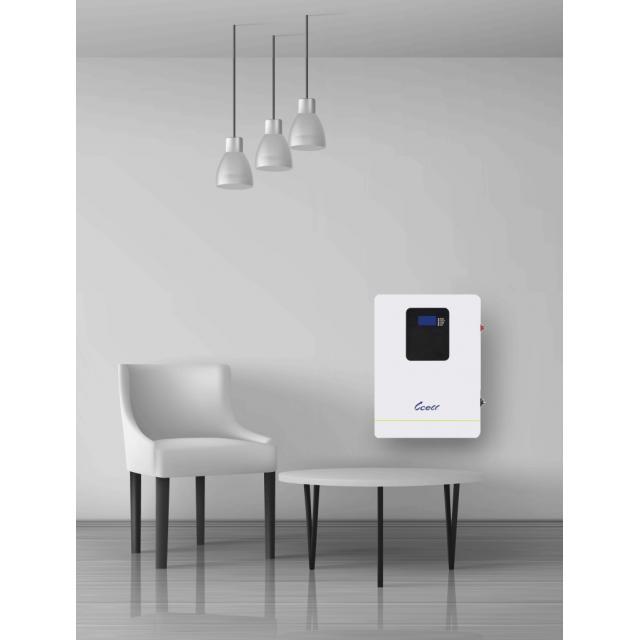

25.6V 200Ah Wall-Mounted LiFePO4 Battery for Home Energy Storage

Recommendation Rate：

The 25.6V 200Ah wall-mounted LiFePO4 battery pack is a mid-voltage energy storage solution designed for residential solar systems and backup power applications. Featuring safe LiFePO4 battery chemistry, intelligent cell balancing, and a smart BMS, it delivers stable performance, long service life, and comprehensive protection.
With RS485 and CAN communication, it is compatible with most mainstream inverters, providing an efficient, quiet, and space-saving energy storage solution for modern home energy systems.

Detail
Parameter

FEATURES:

* Safe and stable LiFePO4 battery chemistry

* Intelligent cell balancing for full capacity utilization

* Built-in smart BMS with complete protection functions

* RS485 & CAN communication, compatible with mainstream inverters

* Wall-mounted compact design for space-saving installation

* Fan-less natural cooling for silent and reliable operation

* IP20 protection, suitable for indoor installation

APPLICATIONS:

Home energy storage systems, residential solar systems, backup power supply, off-grid and hybrid systems

SPECIFICATION：

Battery Type		LiFePO4
Cell Type		3.2V 100Ah LFP
Cell Configuration		8S2P
Nominal Voltage		25.6V
Normal Capacity		200Ah
Nominal Energy		5.12KWh
Charge Voltage		29.2VDC
Voltage Range		21.6V-29.2VDC
Max Charge/Discharge Current		100ADC
Recommended Charge Current		≤100ADC
End of Discharge Voltage		21.6VDC
Self-Discharge Rate		≤3% per month
Communication Method		RS485、CAN
Display Language		English
Operation temperature	Charge	0～55℃
	Discharge	-20～60℃
Storage environment	≤1month	-20～+60℃、5～75%RH
	≥3month	-10～+45℃、5～75%RH
	Recommend environment	15～35℃、5～75%RH
Dimension		600 (H) × 440 (W) × 179 (D) mm
Weight(N.W/G.W)		About 44KG / 48KG
IP Rating		IP20
Cooling Method		Natural Cooling
