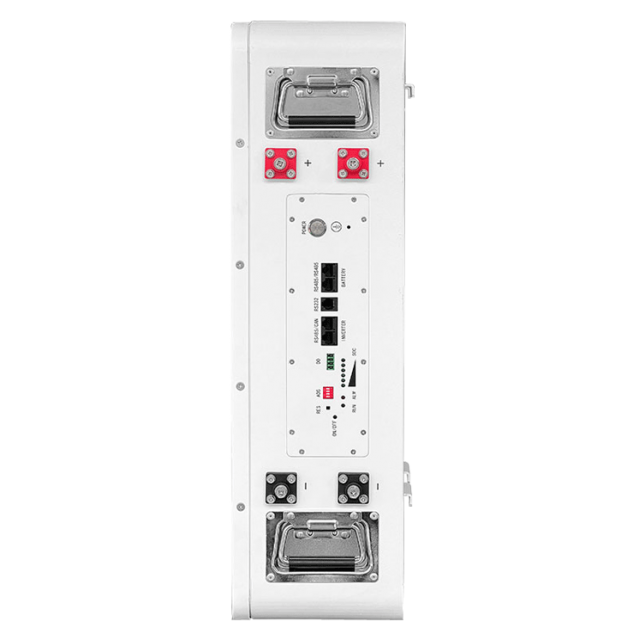

WALL-MOUNTED LITHIUM BATTERY – 51.2V100Ah
The 51.2V 100Ah wall-mounted LiFePO4 battery pack is a high-voltage energy storage solution designed for residential solar systems and backup power applications. Featuring safe LiFePO4 chemistry, intelligent cell balancing, and a smart BMS, it ensures stable performance, long service life, and comprehensive protection. With RS485 and CAN communication, it is compatible with most mainstream inverters, offering an efficient and quiet energy storage solution for modern homes.
FEATURES:
* Safe and stable LiFePO4 battery chemistry
* Intelligent cell balancing for full capacity utilization
* Built-in smart BMS with complete protection functions
* RS485 & CAN communication, compatible with mainstream inverters

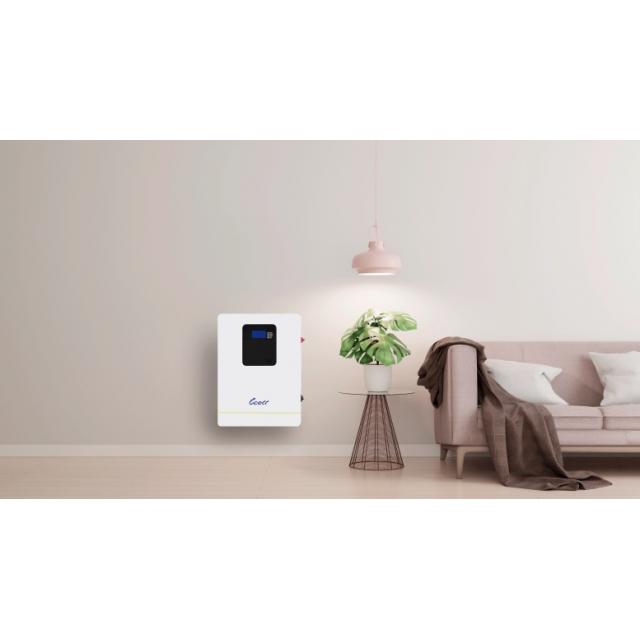

* Wall-mounted compact design, space-saving installation
* Fan-less natural cooling for silent operation
* IP20 protection, suitable for indoor installation
APPLICATIONS:
* Home energy storage systems, residential solar systems, backup power supply, off-grid and hybrid systems.
SPECIFICATION：
| Battery Type | LiFePO4 | |
| Cell Type | 3.2V 100Ah LFP | |
| Cell Configuration | 16S1P | |
| Nominal Voltage | 51.2V | |
| Normal Capacity | 100Ah | |
| Nominal Energy | 5.12KWh | |
| Charge Voltage | 58.4VDC | |
| Voltage Range | 43.2–58.4VDC | |
| Max Charge/Discharge Current | 100ADC | |
| Recommended Charge Current | ≤100ADC | |
| End of Discharge Voltage | 43.2VDC | |
| Self-Discharge Rate | ≤3% per month | |
| Communication Method | RS485、CAN | |
| Display Language | English | |
Operation temperature | Charge | 0～55℃ |
| Discharge | -20～60℃ | |
Storage environment | ≤1month | -20～+60℃、5～75%RH |
| ≥3month | -10～+45℃、5～75%RH | |
Recommend environment | 15～35℃、5～75%RH | |
| Dimension | 600 (H) × 440 (W) × 179 (D) mm | |
| Weight(N.W/G.W) | About 44KG / 48KG | |
| IP Rating | IP20 | |
| Cooling Method | Natural Cooling | |
Advantages:
* High system voltage, suitable for residential ESS
* Large single-unit energy (5.12kWh)
* Strong inverter compatibility via RS485 / CAN
* Quiet operation with fan-less design
* Wall-mounted installation saves floor space
